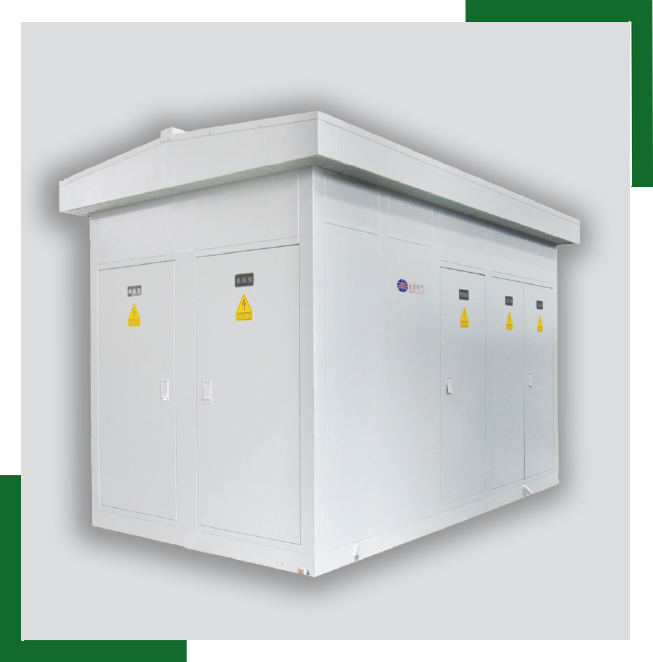

Unitized Substation : 1.6 MVA, 22 KV CLASS
Unitized sub station supplied by us are up to 1600 kva and 11/22kv class. Such USS have the following salient features.
- Compact and sturdy design to save space
- Good aesthetic look
- User friendly & convenient in operation and maintenance
- Designed for ultimate safety of operator and apparatus
- Adequate insulation level using non-hygroscopic material for connection between HV, LV and Transformer Sections
- Emergency stop Push button outside USS
- Properly designed Earthing system
- Remote operation can be supplied for operator safety
- Enclosure designed for moisture and dust protection
- USS are designed to have VCB/RMU units, load feeders, P.F. correction panels, change overs etc.
Hv Compartment
HV VCB OR RMU HV METERING SET LIGHTNING ARRESTORS
Lv Compartment
LV ACB/MCCB LV METERING SE FEEDERS USING HRC FUSE SWITCHES/MCCBs
